300mm Width Battery Automatic Film Casting Machine Adjustable With Film Applicator

Brand Name : TICO

Model Number : STC-TM-300

Place of Origin : Shenzhen, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50 sets per month

Delivery Time : 15~ 20 working days

Packaging Details : Wood Packing

Product Name : Battery Electrode Film Coating Machine

Coating Length : Max. 300mm adjustable , customizable

Doctor Blade : 100mm fixed width as standard, ajustable width optional

Coating Speed : 0~200mm/s adjustable

Dimension : L500 * W310 * H200mm

Weight : 40kg

Contact Now

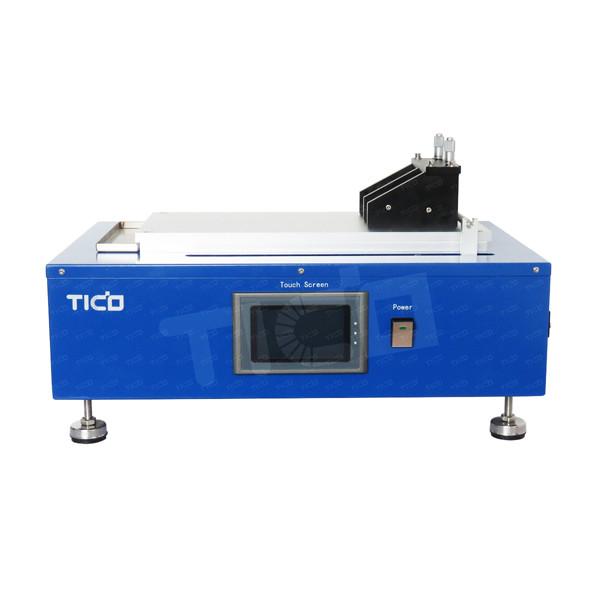

300mm Width Automatic Film Casting Machine with Film Applicator for Battery Research

Brief Introduction

STC-TM-300 is a compact tape casting machine with vacuum chuck, which widely used in all kinds film coating research, like ceramic films, crystal films, lithium battery electrode coating, etc. The coating stroke length can be set. It is compact size ,perfect for laboratory research.

Features

• Touch screen operation, high automation.

• Vacuum aluminium chuck is designed for quick suction of substrate.

• Coating stroke length is adjustable.

• Coating speed can be set.

• Black doctor blade, easy to clean.

Technical Parameter

Working voltage

AC110V/220V optional

Max coating stroke length

300mm adjustable ( customized size is available )

Doctor blade

100mm fixed with & adjustable width, other width optional

Coating thickness range

0.01~3.5mm adjustable

Vacuum chuck

L415 * W200 * H30mm

Vacuum pump

Internal

Coating speed

0~200mm/s adjustable

Dimension

L500 * W310 * H200mm

Weight

40kg

Warranty

1 year's warranty with lifetime technical support.

FAQ

1. Are you a manufacturer ?

A: Yes, our factory is located in Shenzhen, China.

We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R& D department.

2. Do you accept customized product ?

A : Yes, Most of our products can be customzied to meet different requirements.

3. Will you provide test video before dispatch?

A : Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service ?

A : Yes, we can dispatch professional engineer for on-site installation service.
